Site Lighting

IPL Series Solar Overhead Light

Colors: Bronze, White, Black, Silver +

LED: 3000K, 4500K, Amber

Lighting Profiles: Dusk til Dawn, Dark +6 Hrs/OFF, Dark +6 Hrs/30%, Dark +5 Hrs/OFF/-1 Hr Sunrise, Dark +5 Hrs/30%/-1 Hr Sunrise (Default)

Poles are color matched and ordered separately

Options: Backlit Shield, Thru Bolt, Portable Poles, Ground Screw Installation

Battery: LifePo4 High Performance Lithium Battery with expected life of 8-10 years.

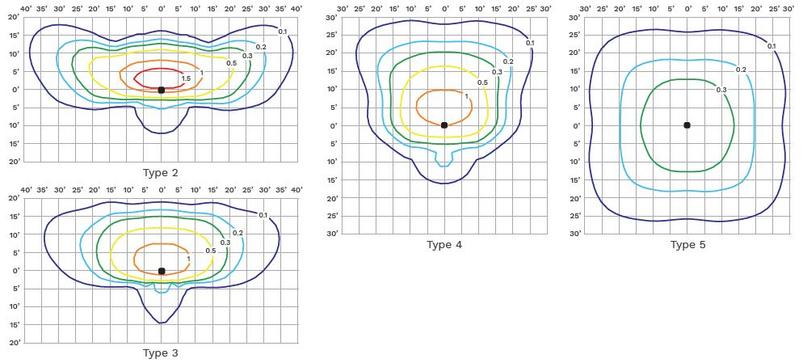

Photometrics

A new age of solar LED pathway lighting has arrived. The Integrated Pathway Light, or IPL serires shatters the solar stigma combining aesthetic design with high-quality light output for your pathway lighting needs.  The IPL series builds on our previous successes with our fully integrated aesthetic design, self-learning energy management system and architectural grade construction.  The new unit is a pole mounted luminaire with a suggested pole height of 10-15 feet with typical spacing of 40-65 feet.

Utilizing solar power and LED lighting the IPL is fully self contained and offers significant benefits over typical wired pathway lights:

  • Low installed cost and minimal site impact with no trenching, cabling or wiring
  • Minimal ongoing costs with no electrical bills or bulbs to change
  • Immune from power outages
  • Provide a visibly green statement without recurring carbon emissions
  • ​Utilizing smart technology for sustainable long term performance
  • High Performance Lithium (LiFePO4) Batteries with Exceptional 8-10 year life cycle
  • SLC Technology is designed to auto-manage lighting performance based on environmental conditions and lighting requirements
  • ​Typical output 1200 lumens



The performance of the IPL Series Solar LED Light is maximized through the use of proprietary energy management technology, called Solar Lighting Controller (SLC) that allows the luminaire to function in harmony with its environment.

The SLC ensures that regardless of low-solar weather patterns or unusual charging conditions such as shading, the pathway light continues to provide quality light that enhances the appeal and safety of the night time environment.



IES files available upon request

​NEW!

For more information about our revolutionary Ground Screw Systems, click here.  This proprietary method removes concrete foundations and can reduce installation of poles and overhead lighting to 30 minutes per site!
